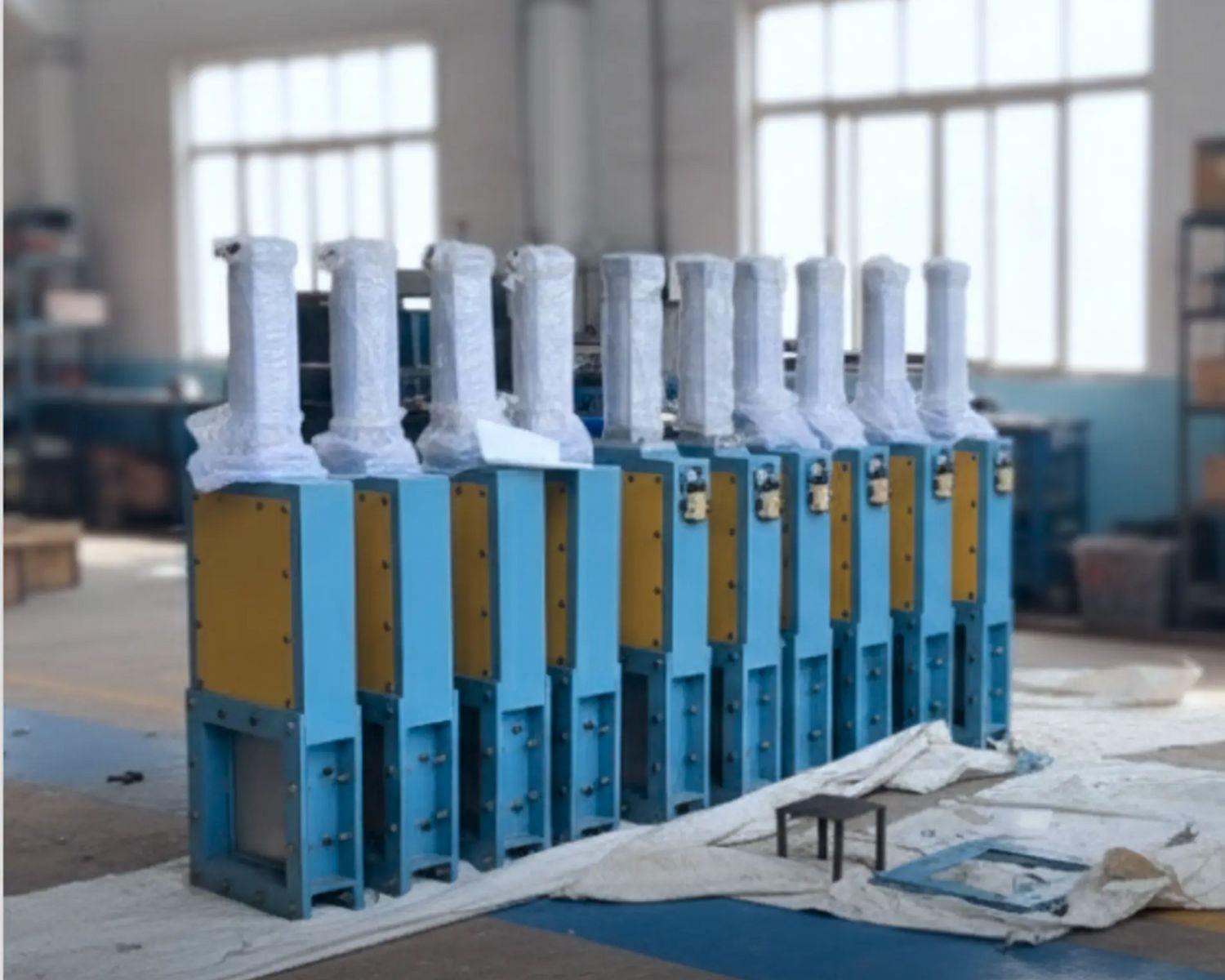

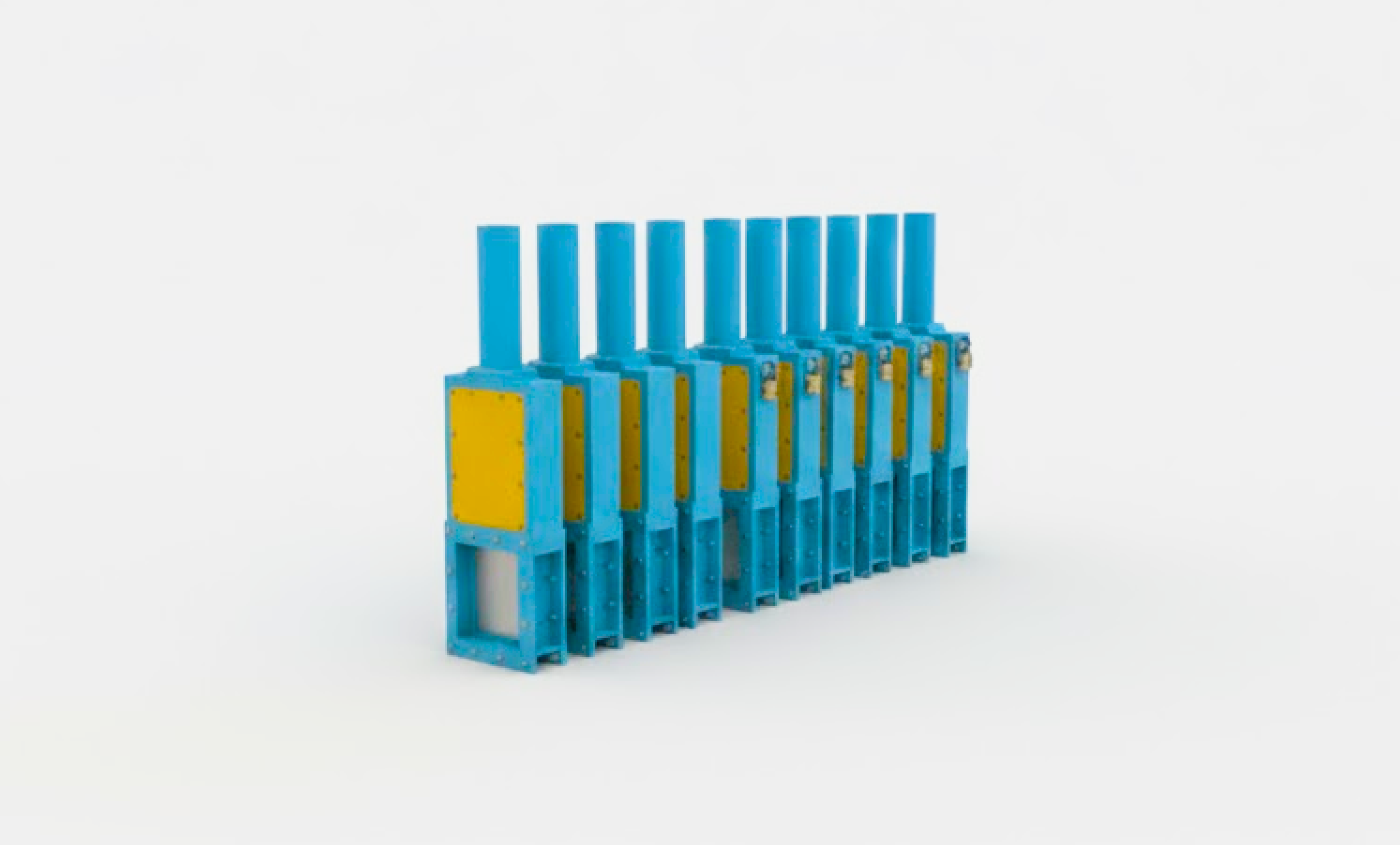

Slide Gate Heavy Duty Performance

UGES fabricated slide gates: knife gate, guillotine, slide plate and butterfly designs. 150mm to 2000mm port size with pneumatic, manual, hydraulic or motorized actuation. For cement, mining, power and steel plant bulk material handling.

Trusted by largest brands in India

Enterprise Solutions Overview

Comprehensive Business Technology Platform

Slide Gate Key Specifications

{context.products_v2.key_specification_description}

Gate Types

5 types: Knife Gate (sharp-edge shutoff for fine powders), Guillotine Gate (heavy-duty vertical slide for bulk solids), Slide Plate Gate (horizontal sliding for simple shutoff), Butterfly Gate (rotary disc, quick actuation), Swing Gate (hinged plate, gravity-assisted).

Actuation Methods

Manual (handwheel or lever for set-and-forget), Pneumatic (air cylinder for fast automated operation), Hydraulic (for high-force heavy-duty applications), Electric/Motorized (for precise PLC-controlled positioning).

Sealing Performance

Standard sealing for general bulk material isolation. Low Leakage with enhanced rubber/polymer seats for fine powders. Zero Leakage with inflatable seals for complete isolation in pneumatic conveying and hazardous material applications.

Seating Options

Soft Seated: rubber or polymer seats for dust-tight seal on fine materials. Hard Seated: metal-to-metal contact for high-temperature and abrasive material applications. Both options available in all gate types.

Size Range

150mm to 2000mm port size in square, rectangular or circular configurations. Custom fabricated from mild steel, stainless steel or Hardox plates to match existing plant infrastructure and material requirements.

Construction

Fabricated steel construction allows custom sizes beyond casting limitations. Welded and machined frames with flanged or welded connections. Optional Hardox slide plates for extreme abrasion resistance in cement and mining applications.

{context.products_v2.variation_description}

Slide Gate Variations

Industrial Applications

{context.products_v2.use_case_description}

Core Features

Cement Silo Discharge Control

Pneumatic guillotine gates for clinker cooler isolation and cement silo discharge. High-temperature rated to 200°C with abrasion-resistant internals. Knife gates for fine cement powder isolation at bag filter discharge points.

Integration

Mining Crusher Discharge

Heavy-duty fabricated slide gates with Hardox slide plates for crusher discharge, bin isolation and chute flow regulation. Sizes up to 1500mm for high-throughput mining and aggregate operations with pneumatic or hydraulic actuation.

Security

Power Plant Material Control

Coal bunker discharge regulation, ash hopper isolation and material flow control in coal handling plants. Pneumatic actuation for automated SCADA-integrated operation. Zero-leakage options for hazardous dust environments.
